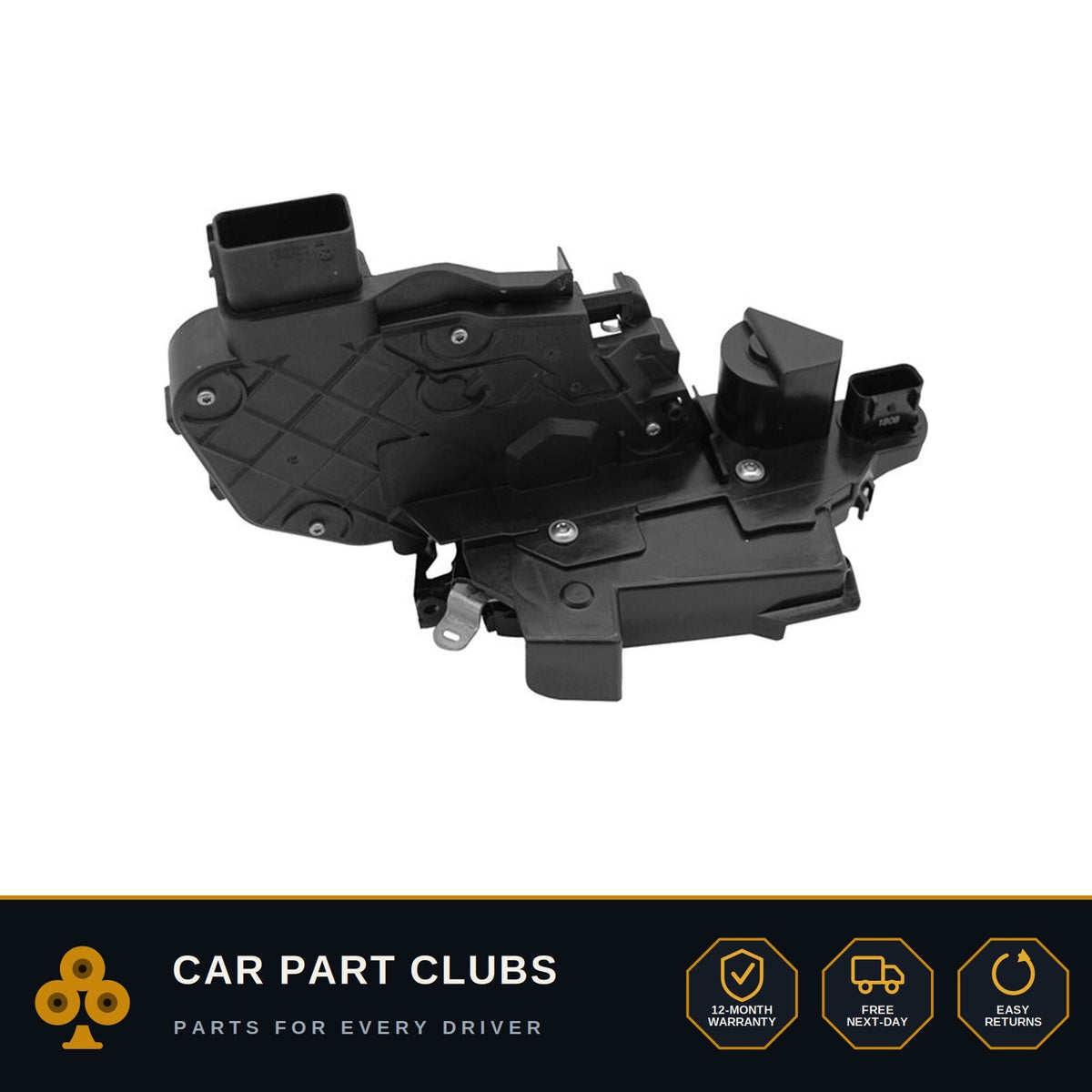

Keyless Door Lock Actuator – Front Left – Jaguar XF CC9 – LR014101

Get your Jaguar XF CC9 back to reliable central locking and door entry with this replacement door lock actuator, also referenced in service manuals as the door latch actuator or door lock solenoid. Built to OEM specification, matching LR014101, 3100393, 014101, LR071637 and LR091526. Also fits equivalent Land Rover models.

Common signs of failure

A failing door lock actuator typically causes one door to stop responding to the key fob or interior lock switch while the others still work. You'll often hear a brief clicking or whirring from inside the door card when locking is attempted, sometimes followed by the central locking giving up after a few seconds. Common related fault codes include B22F0, B22F1 and B22F2 on VAG cars. On vehicles with keyless entry, the dashboard may display a 'Doors not locked' warning.

Fitment notes

Direct-fit replacement actuator, no diagnostic coding required. Door card removal is necessary to access the actuator — typically secured with two or three Torx bolts to the door frame. Disconnect the wiring harness and lock rods before swapping. Most actuators fail in the gearing inside the motor housing, so a clean OEM-spec replacement restores full operation. Standard 10 pin connector. Position: Front, Left, Nearside Front.

Frequently asked questions

Why does my central locking only work sometimes?

Intermittent operation is the classic sign of a worn door lock actuator. The plastic gears inside the actuator wear down and slip, working when warm but failing when cold or after the car's been sat. Replacement is the only reliable fix.

Can I lubricate it instead of replacing?

Sometimes a stuck actuator can be temporarily revived with silicone grease, but worn internal gears cannot be repaired. If the fault has returned more than once, replace the unit.

Do I need to programme the new actuator?

No — door lock actuators are passive components controlled by the body control module. Fit, reconnect, and test.
