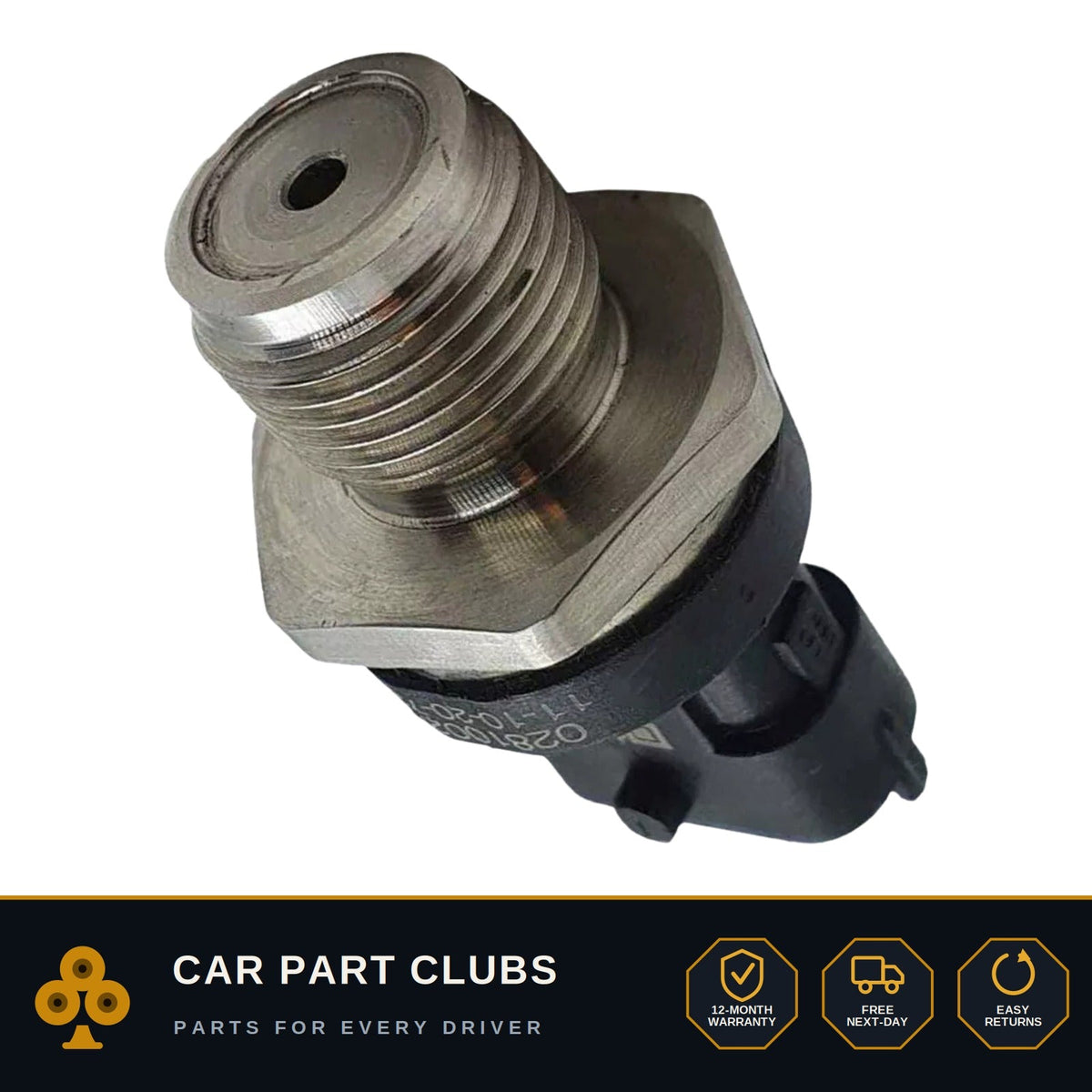

Fuel Rail Pressure Sensor – Vauxhall Corsa Corsavan Mk3 D – 0281002706
Overview What this part does
Get your Vauxhall Corsa Corsavan MK3 D back to correct fuel rail pressure regulation and reliable starting with this replacement fuel pressure sensor, also referenced in service manuals as the low pressure fuel sensor or fuel rail sensor. Built to OEM specification, matching 0281002706, 0281002937, 504152959, 55195078 and 500372234. Also fits equivalent Alfa romeo, Suzuki and Ford models.
Common signs of failure
A failing fuel pressure sensor commonly logs codes P0190, P0191, P0192, P0193 or P0194 (fuel rail pressure sensor circuit faults). Symptoms include hard starting (hot or cold), prolonged cranking, stalling at idle, hesitation under acceleration, intermittent loss of power, and on common-rail diesels the vehicle dropping into limp mode. A failed sensor can also cause the ECU to default to incorrect injection timing, hurting fuel economy and emissions.
Fitment notes
Direct-fit replacement, no coding required after fitting. Relieve fuel system pressure before removal (depressurise via the dedicated fuse procedure on most cars). Use a new sealing washer or O-ring if supplied, and torque to manufacturer spec — over-tightening can crack the sensor body. Clear codes with any OBD2 scanner after installation. Standard 3 pin connector. Position: Engine Compartment.
Frequently asked questions
Can I drive with a P0190 code?
Short distances only. A faulty fuel pressure sensor causes incorrect fuelling, which on common-rail diesel engines can damage injectors over time. Replace promptly.
Is this the same as a fuel pump?
No — the pressure sensor measures fuel pressure in the rail and reports it to the ECU. The fuel pump is a separate component that actually moves fuel from the tank. They commonly fail together but are distinct parts.
Do I need to bleed the fuel system after fitting?
Most modern cars self-prime when you cycle the ignition. On older common-rail diesels, follow the service-manual bleed procedure to clear air from the high-pressure circuit.
Specifications
- Type
- Fuel Pressure Sensor
- Position
- Engine Compartment
- OEM references
- 0281002706, 0281002937, 504152959, 55195078, 500372234, 46779638, 46542976, 46481638, 1581708, 9S519G756AB, 04216218, 504247741, 55207677, 504382372, 27421, 93185626, 55576178, 7701055704, 5001867660, 7701048994, 5001853014, 7701068387, 1576084E51000, 15760-84E51, 20792328, 21407309, 30677300, 3843100, 0281002707, 04213470, 4213470, 51274210230, 3230182500, 42561376, 8099063, 0281002903
- Connector
- 3 pin
- Warranty
- 1 year
- Coding required
- No coding needed
- Vehicle makes
- Alfa Romeo, Suzuki, Ford, Lancia, Fiat, Volvo, Saab, Opel, Iveco, Renault, Chevrolet
Fits these cars77 compatible models
| Make | Model | Years | Engine |
|---|---|---|---|
| Alfa Romeo | 147 (937) 1.9 Jtdm | 2004,2005,2006,2007,2008,2009,2010 | |
| Alfa Romeo | Hatchback 156 (932) 1.9 / 2.4 JTD | 2003,2004,2005,2006 | |
| Alfa Romeo | Estate / Saloon 159 (939) 1.9 2.4 Jtdm | 2005,2006,2007,2008,2009,2010,2011 | |
| Alfa Romeo | Estate / Saloon 166 (936) 2.4 Jtdm | 2003,2004,2005,2006,2007 | |
| Alfa Romeo | Saloon Giulietta (940) 2.0 Jtdm | 2010,2011,2012,2013,2014,2015 | |
| Alfa Romeo | Hatchback GT (937) 1.9 JTD | 2003,2004,2005,2006,2007,2008,2009,2010 | |
| Alfa Romeo | Coupe Mito (955) 1.3 Jtdm | 2008,2009,2010,2011,2012,2013 | |
| Suzuki | Ignis (MK2 II) 1.3 Ddis | 2003,2004,2005,2006 | |
| Suzuki | SUV Splash 1.3 CDTI | 2008,2009,2010,2011,2012,2013,2014,2015 | |
| Suzuki | Hatchback Swift (MK3 III) 1.3 Ddis | 2005,2006,2007,2008,2009,2010 | |
| Suzuki | Hatchback Wagon R (MM) 1.3 Ddis | 2003,2004,2005,2006,2007 | |
| Ford | KA 1.3 Tdci | 2009,2010,2011,2012,2013,2014,2015 | |
| Lancia | Delta (MK3 III) 1.9 / 2.0 D Multijet | 2008,2009,2010,2011,2012,2013,2014 | |
| Lancia | Hatchback Musa (350) 1.3 D Multijet | 2006,2007,2008,2009,2010,2011,2012 | |
| Lancia | MPV Thesis (841AX) 2.4 D Multijet | 2006,2007,2008,2009 | |
| Lancia | Saloon Ypsilon (843) 1.3 D Multijet | 2006,2007,2008,2009,2010,2011 | |
| Fiat | Bravo (MK2 II) 1.9 D Multijet | 2006,2007,2008,2009,2010,2011,2012,2013,2014,2015 | |
| Fiat | Hatchback Croma (194) 1.9 D / 2.4 D Multijet | 2005,2006,2007,2008,2009,2010,2011,2012,2013,2014,2015 | |
| Fiat | Estate Doblo (119) 1.3 / 1.9 JTD | 2001,2002,2003,2004,2005,2006,2007,2008,2009,2010 | |
| Fiat | MPV Doblo (119) 1.3 D Multijet | 2001,2002,2003,2004,2005,2006,2007,2008,2009,2010 | |
| Fiat | MPV Doblo (263) 1.3 D Multijet | 2010,2011,2012,2013 | |
| Fiat | MPV / BOX / Platform / Chassis / Estate Doblo Cargo (223) 1.3 / 1.9 JTD | 2001,2002,2003,2004,2005,2006,2007,2008,2009,2010 | |
| Fiat | BOX Doblo Cargo (223) 1.3 D Multijet | 2001,2002,2003,2004,2005,2006,2007,2008,2009,2010 | |
| Fiat | BOX Ducato (244 / Z_) 2.3 JTD | 2002,2003,2004,2005,2006,2007,2008,2009,2010,2011 | |
| Fiat | BOX / BUS / Platform / Chassis Linea (323) 1.3 D Multijet | 2007,2008,2009,2010,2011,2012,2013,2014,2015 | |
| Fiat | Saloon Panda (169) 1.3 D Multijet / 4X4 | 2004,2005,2006,2007,2008,2009,2010,2011 | |
| Fiat | Hatchback Punto (188) 1.3 / 1.9 JTD | 2003,2004,2005,2006 | |
| Fiat | Hatchback Punto / Grande Punto (199) 1.9 D Multijet | 2005,2006,2007,2008,2009,2010,2011 | |
| Fiat | Hatchback Sedici 1.9 D Multijet / 4X4 | 2006,2007,2008,2009,2010,2011,2012,2013 | |
| Fiat | SUV Stilo (192) 1.9 D Multijet / JTD | 2001,2002,2003,2004,2005,2006 | |
| Fiat | Hatchback Stilo Multi (192) 1.9 D Multijet / JTD | 2003,2004,2005,2006,2007,2008 | |
| Fiat | Estate Strada (178E) 1.3 D Multijet | 2006,2007,2008,2009,2010,2011,2012,2013,2014,2015 | |
| Volvo | C30 2.4 D5 | 2006,2007,2008,2009,2010,2011,2012 | |
| Volvo | Hatchback C70 (MK2 II) 2.4 D / D5 | 2006,2007,2008,2009,2010,2011,2012,2013 | |
| Volvo | Convertible S40 (MK2 II) 2.4 D5 | 2006,2007,2008,2009,2010 | |
| Volvo | Saloon S60 2.4 D / D5 | 2005,2006,2007,2008,2009,2010 | |
| Volvo | Saloon S80 (MK2 II) 2.4 D / D5 / D5 AWD | 2006,2007,2008,2009,2010 | |
| Volvo | Saloon V50 (MW) 2.4 D5 / TDI | 2006,2007,2008,2009,2010 | |
| Volvo | Estate V70 (MK2 II) 2.4 D / D5 / D5 AWD | 2001,2002,2003,2004,2005,2006,2007 | |
| Volvo | Estate V70 (MK3 III) 2.4 D / D5 / D5 AWD | 2007,2008,2009,2010 | |
| Volvo | Estate XC60 2.4 D AWD / D5 AWD | 2008,2009,2010,2011,2012,2013,2014,2015 | |
| Volvo | Estate XC70 (MK2 II) 2.4 D D4 AWD / D5 AWD | 2007,2008,2009,2010,2011,2012,2013,2014,2015 | |
| Volvo | Estate XC70 Cross Country 2.4 D5 AWD | 2005,2006,2007 | |
| Volvo | Estate XC90 (MK1 I) 2.4 D5 AWD | 2006,2007,2008,2009,2010,2011,2012 | |
| Saab | 9-3 (YS3F) 1.9 TID / Ttid | 2004,2005,2006,2007,2008,2009,2010,2011,2012,2013,2014,2015 | |
| Saab | Saloon / Estate / Convertible 9-3X 1.9 Ttid | 2009,2010,2011,2012 | |
| Saab | Estate 9-5 (YS3E) 1.9 TID | 2006,2007,2008,2009 | |
| Opel | Agila (B) 1.3 CDTI | 2007,2008,2009,2010,2011,2012,2013,2014,2015 | |
| Opel | Hatchback Agila (MK2 II) 1.3 CDTI | 2008,2009,2010,2011,2012,2013,2014 | |
| Opel | Hatchback Antara 2.0 CDTI | 2006,2007,2008,2009,2010,2011,2012,2013,2014,2015 | |
| Opel | SUV Astra (H) 1.9 CDTI | 2005,2006,2007,2008,2009 | |
| Opel | Hatchback / Estate Astra (MK5 V) 1.9 CDTI | 2005,2006,2007,2008,2009,2010 | |
| Opel | Hatchback / Estate Astra (H Twintop) 1.9 CDTI | 2005,2006,2007,2008,2009 | |
| Opel | Convertible Astravan (MK5 V) 1.9 CDTI | 2005,2006,2007,2008,2009,2010 | |
| Opel | BOX Combo (X12) 1.6 / 2.0 CDTI | 2012,2013,2014,2015 | |
| Opel | BOX / Estate Combo Tour (X12) 1.6 / 2.0 CDTI | 2012,2013,2014,2015 | |
| Opel | MPV Combo (MK3 III) 1.6 / 2.0 CDTI | 2011,2012,2013,2014,2015 | |
| Opel | BOX / Estate Corsa (D) 1.3 CDTI | 2006,2007,2008,2009,2010,2011,2012,2013,2014,2015 | |
| Opel | Hatchback / BOX Corsa (MK3 III) 1.3 CDTI | 2006,2007,2008,2009,2010,2011,2012,2013,2014 | |
| Opel | Hatchback Corsavan (MK3 III) 1.3 CDTI | 2006,2007,2008,2009,2010,2011,2012,2013,2014,2015 | |
| Opel | BOX Meriva 1.3 CDTI | 2003,2004,2005,2006,2007,2008,2009,2010 | |
| Opel | MPV Signum 1.9 CDTI | 2004,2005,2006,2007,2008 | |
| Opel | Hatchback Vectra (C) 1.9 CDTI | 2004,2005,2006,2007,2008,2009 | |
| Opel | Estate / Saloon Vectra (MK2 II) 1.9 CDTI | 2002,2003,2004,2005,2006,2007,2008 | |
| Opel | Estate / Saloon / Hatchback Zafira (B) 1.9 CDTI | 2005,2006,2007,2008,2009,2010,2011 | |
| Opel | MPV Zafira (MK2 II) 1.9 CDTI | 2005,2006,2007,2008,2009,2010,2011 | |
| Iveco | Daily 2.3 3.0 Diesel | 2002,2003,2004,2005,2006 | |
| Renault | Megane (MK2 II) 1.9 DCI | 2005,2006,2007,2008,2009 | |
| Renault | Convertible / Hatchback / Saloon Avantime 2.2 DCI | 2002,2003 | |
| Renault | Laguna 1.9 DCI | 2005,2006,2007 | |
| Renault | Hatchback Scenic/grand Scenic 1.9 DCI | 2005,2006,2007,2008,2009 | |
| Renault | Hatchback VAL Satis 2.2 DCI | 2004,2005,2006,2007,2008,2009 | |
| Renault | Master 3.0 | 2003,2004,2005,2006 | |
| Chevrolet | Captiva (C100, C140) 2.0 D / 2.0 D 4WD | 2006,2007,2008,2009,2010,2011,2012,2013,2014,2015 | |
| Chevrolet | SUV Epica (KL1_) 2.0 D | 2007,2008,2009,2010,2011 | |
| Chevrolet | Saloon Lacetti (J200) 2.0 D | 2007,2008,2009,2010,2011,2012,2013,2014,2015 | |
| Chevrolet | Hatchback Nubira 2.0 D | 2005,2006,2007,2008,2009,2010,2011 |
