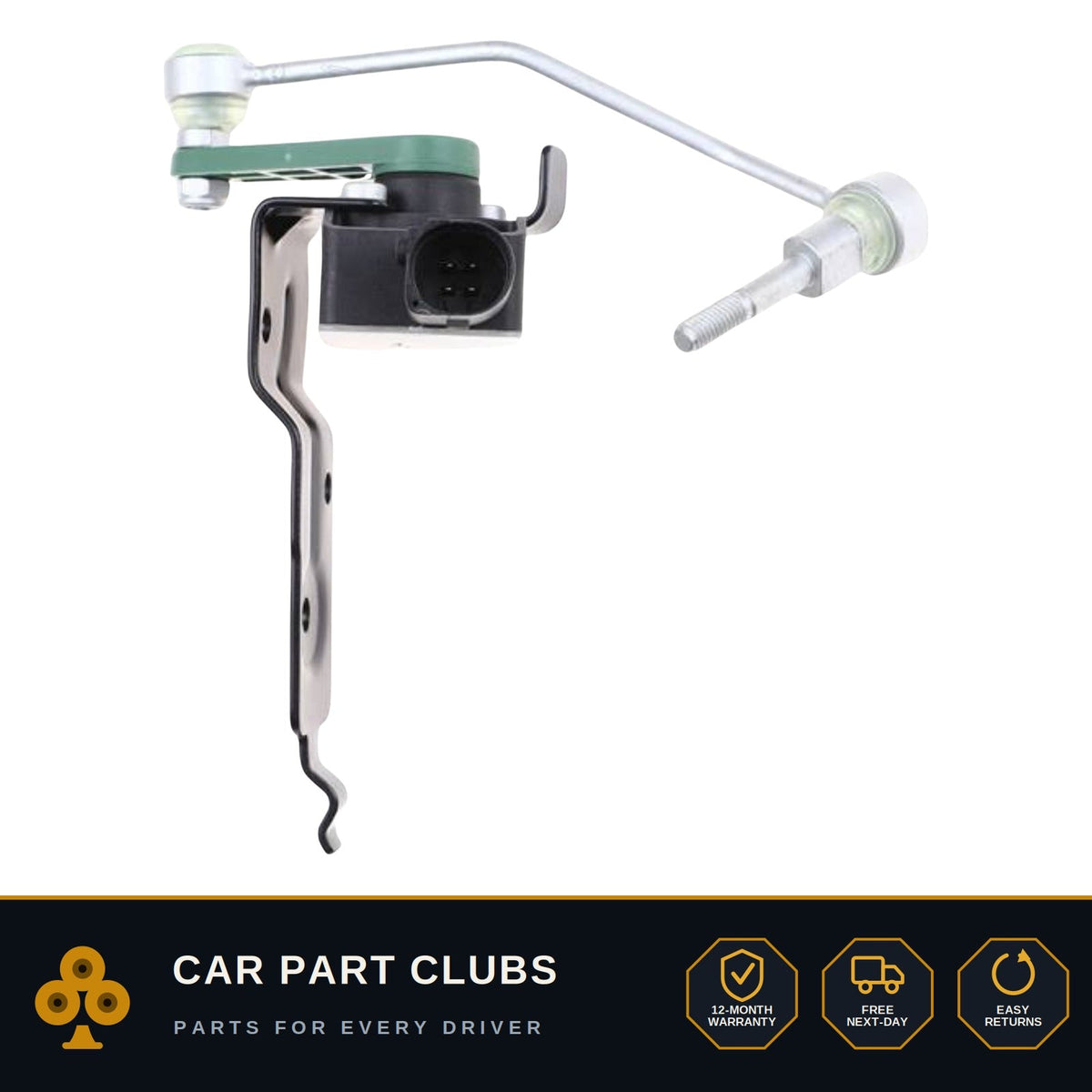

1 / 6Ride Height Sensor – Front Left – Audi A6 C6 Avant – 4F0941285B

Ride Height Sensor – Front Left – Audi A6 C6 Avant – 4F0941285B

OEM refs
Position: Front, LeftType: Ride Height Level SensorConnector: 4 pin
£44.99
In stock · 18 available
Order before 16:00 for Tracked 24 delivery
1-year warranty
30-day returns
OE-grade verified
Free UK shipping
Not sure it fits?

Drop in your registration plate or VIN and we will confirm this part fits your exact vehicle. Reply usually within 1 hour, 9 to 6.

We will only use your details to confirm fitment for this enquiry.

Overview What this part does

Restore proper headlight beam alignment and air suspension control on your Audi A6 C6 Avant with this direct-replacement ride height level sensor — also known as the air suspension sensor, level sender or height sensor. Built to OEM specification and matching part numbers 4F0941285B, 4F0941285, 6PM008518-12, 4F0907503 and 6PM008739-01.

Common signs of failure

A failing ride height sensor commonly causes xenon, LED or matrix headlights to point too high (dazzling oncoming drivers) or too low (reducing your night-time visibility), and often disables auto-levelling entirely. On VAG group cars expect dashboard headlight error messages and fault codes B106A or B107A; on cars with air suspension you'll see the suspension warning light, uneven ride height, or the vehicle stuck low after parking. Faulty sensors also cause MOT fails on the headlamp aim test.

Fitment notes

Plug-and-play installation, no diagnostic coding required. The same physical sensor is shared across the VAG group (Audi, VW, Skoda, Seat) on many platforms — the quickest way to confirm fit is to match your existing part number to one of those listed above. Mounting bracket and linkage are typically reused from your original sensor. Standard 4 pin connector. Position: Front, Left.

Frequently asked questions

Is this a headlight sensor or an air suspension sensor?

Same physical part — most VAG group cars use one sensor whose signal feeds both the auto-levelling headlight ECU and (where fitted) the air suspension control module. Replacing it fixes both systems.

Will replacing it stop the dashboard warning?

Yes — once the new sensor is fitted and the ignition cycled, headlight error messages usually clear on their own. Stubborn faults can be cleared with VCDS or any generic OBD2 scanner that supports module reset.

Do I need to calibrate the headlamps after fitting?

Basic aim adjustment is recommended after replacement; full electronic calibration is only required if the headlamp unit itself was also replaced.

Specifications

Type
Ride Height Level Sensor
Position
Front, Left
OEM references
4F0941285B, 4F0941285, 6PM008518-12, 4F0907503, 6PM008739-01, SENS-5156-A6C6
Connector
4 pin
Warranty
1 year
Coding required
No coding needed
Vehicle makes
Audi

Fits these cars75 compatible models

MakeModelYearsEngine
Audi A6 Allroad C6 (4FH) 2.7 TDI quattro 2008,2009,2010,2011 2698cc 140kW 190HP
Audi A6 Allroad C6 (4FH) 2.7 TDI quattro 2006,2007,2008 2698cc 132kW 180HP
Audi A6 Allroad C6 (4FH) 2.7 TDI quattro 2006,2007,2008,2009,2010,2011 2698cc 120kW 163HP
Audi A6 Allroad C6 (4FH) 3.0 TDI quattro 2008,2009,2010,2011 2967cc 176kW 240HP
Audi A6 Allroad C6 (4FH) 3.0 TDI quattro 2006,2007,2008 2967cc 171kW 233HP
Audi A6 Allroad C6 (4FH) 3.0 TDI quattro 2006,2007,2008,2009,2010,2011 2967cc 155kW 211HP
Audi A6 Allroad C6 (4FH) 3.0 TFSI quattro 2008,2009,2010,2011 2995cc 213kW 290HP
Audi A6 Allroad C6 (4FH) 3.2 FSI quattro 2006,2007,2008 3123cc 188kW 255HP
Audi A6 Allroad C6 (4FH) 4.2 FSI quattro 2006,2007,2008,2009,2010 4163cc 257kW 350HP
Audi A6 C6 (4F2) 2.0 TDI 2008,2009,2010,2011 1968cc 125kW 170HP
Audi A6 C6 (4F2) 2.0 TDI 2004,2005,2006,2007,2008 1968cc 103kW 140HP
Audi A6 C6 (4F2) 2.0 TDI 2004,2005,2006,2007,2008,2009,2010,2011 1968cc 100kW 136HP
Audi A6 C6 (4F2) 2.0 TDI 2005,2006 1968cc 89kW 121HP
Audi A6 C6 (4F2) 2.0 TFSI 2005,2006,2007,2008,2009,2010,2011 1984cc 125kW 170HP
Audi A6 C6 (4F2) 2.4 2004,2005,2006,2007,2008 2393cc 130kW 177HP
Audi A6 C6 (4F2) 2.4 quattro 2005,2006,2007,2008 2393cc 130kW 177HP
Audi A6 C6 (4F2) 2.7 TDI 2008,2009,2010,2011 2698cc 140kW 190HP
Audi A6 C6 (4F2) 2.7 TDI 2004,2005,2006,2007,2008 2698cc 132kW 180HP
Audi A6 C6 (4F2) 2.7 TDI 2004,2005,2006,2007,2008,2009,2010,2011 2698cc 120kW 163HP
Audi A6 C6 (4F2) 2.7 TDI quattro 2008,2009,2010,2011 2698cc 140kW 190HP
Audi A6 C6 (4F2) 2.7 TDI quattro 2004,2005,2006,2007,2008 2698cc 132kW 180HP
Audi A6 C6 (4F2) 2.7 TDI quattro 2005,2006,2007,2008,2009,2010,2011 2698cc 120kW 163HP
Audi A6 C6 (4F2) 2.8 FSI 2008,2009,2010,2011 2773cc 162kW 220HP
Audi A6 C6 (4F2) 2.8 FSI 2006,2007,2008 2773cc 154kW 210HP
Audi A6 C6 (4F2) 2.8 FSI 2008,2009,2010,2011 2773cc 140kW 190HP
Audi A6 C6 (4F2) 2.8 FSI quattro 2008,2009,2010,2011 2773cc 162kW 220HP
Audi A6 C6 (4F2) 2.8 FSI quattro 2007,2008 2773cc 154kW 210HP
Audi A6 C6 (4F2) 2.8 FSI quattro 2008,2009,2010,2011 2773cc 140kW 190HP
Audi A6 C6 (4F2) 3.0 2004,2005,2006 2976cc 160kW 218HP
Audi A6 C6 (4F2) 3.0 TDI quattro 2008,2009,2010,2011 2967cc 176kW 240HP
Audi A6 C6 (4F2) 3.0 TDI quattro 2006,2007,2008 2967cc 171kW 233HP
Audi A6 C6 (4F2) 3.0 TDI quattro 2004,2005,2006 2967cc 165kW 225HP
Audi A6 C6 (4F2) 3.0 TDI quattro 2004,2005,2006,2007,2008,2009,2010,2011 2967cc 155kW 211HP
Audi A6 C6 (4F2) 3.0 TFSI quattro 2008,2009,2010,2011 2995cc 220kW 299HP
Audi A6 C6 (4F2) 3.0 TFSI quattro 2008,2009,2010,2011 2995cc 213kW 290HP
Audi A6 C6 (4F2) 3.0 quattro 2004,2005,2006 2976cc 160kW 218HP
Audi A6 C6 (4F2) 3.2 FSI 2009,2010,2011 3197cc 195kW 265HP
Audi A6 C6 (4F2) 3.2 FSI 2004,2005,2006,2007,2008,2009 3123cc 188kW 255HP
Audi A6 C6 (4F2) 3.2 FSI quattro 2004,2005,2006,2007,2008 3123cc 188kW 255HP
Audi A6 C6 (4F2) 4.2 FSI quattro 2006,2007,2008,2009,2010,2011 4163cc 257kW 350HP
Audi A6 C6 (4F2) 4.2 quattro 2004,2005,2006 4163cc 246kW 335HP
Audi A6 C6 (4F2) S6 quattro 2006,2007,2008,2009,2010,2011 5204cc 320kW 435HP
Audi A6 C6 Avant (4F5) 2.0 TDI 2008,2009,2010,2011 1968cc 125kW 170HP
Audi A6 C6 Avant (4F5) 2.0 TDI 2009,2010,2011 1968cc 120kW 163HP
Audi A6 C6 Avant (4F5) 2.0 TDI 2005,2006,2007,2008 1968cc 103kW 140HP
Audi A6 C6 Avant (4F5) 2.0 TDI 2005,2006,2007,2008,2009,2010,2011 1968cc 100kW 136HP
Audi A6 C6 Avant (4F5) 2.0 TDI 2005,2006 1968cc 89kW 121HP
Audi A6 C6 Avant (4F5) 2.0 TFSI 2005,2006,2007,2008,2009,2010,2011 1984cc 125kW 170HP
Audi A6 C6 Avant (4F5) 2.4 2005,2006,2007,2008 2393cc 130kW 177HP
Audi A6 C6 Avant (4F5) 2.4 quattro 2005,2006,2007,2008 2393cc 130kW 177HP
Audi A6 C6 Avant (4F5) 2.7 TDI 2008,2009,2010,2011 2698cc 140kW 190HP
Audi A6 C6 Avant (4F5) 2.7 TDI 2005,2006,2007,2008 2698cc 132kW 180HP
Audi A6 C6 Avant (4F5) 2.7 TDI 2005,2006,2007,2008,2009,2010,2011 2698cc 120kW 163HP
Audi A6 C6 Avant (4F5) 2.7 TDI quattro 2008,2009,2010,2011 2698cc 140kW 190HP
Audi A6 C6 Avant (4F5) 2.7 TDI quattro 2004,2005,2006,2007,2008 2698cc 132kW 180HP
Audi A6 C6 Avant (4F5) 2.7 TDI quattro 2005,2006,2007,2008,2009,2010,2011 2698cc 120kW 163HP
Audi A6 C6 Avant (4F5) 2.8 FSI 2008,2009,2010,2011 2773cc 162kW 220HP
Audi A6 C6 Avant (4F5) 2.8 FSI 2006,2007,2008 2773cc 154kW 210HP
Audi A6 C6 Avant (4F5) 2.8 FSI 2008,2009,2010,2011 2773cc 140kW 190HP
Audi A6 C6 Avant (4F5) 2.8 FSI quattro 2008,2009,2010,2011 2773cc 162kW 220HP
Audi A6 C6 Avant (4F5) 2.8 FSI quattro 2007,2008 2773cc 154kW 210HP
Audi A6 C6 Avant (4F5) 2.8 FSI quattro 2008,2009,2010,2011 2773cc 140kW 190HP
Audi A6 C6 Avant (4F5) 3.0 2005,2006 2976cc 160kW 218HP
Audi A6 C6 Avant (4F5) 3.0 TDI quattro 2008,2009,2010,2011 2967cc 176kW 240HP
Audi A6 C6 Avant (4F5) 3.0 TDI quattro 2006,2007,2008 2967cc 171kW 233HP
Audi A6 C6 Avant (4F5) 3.0 TDI quattro 2005,2006 2967cc 165kW 225HP
Audi A6 C6 Avant (4F5) 3.0 TDI quattro 2005,2006,2007,2008,2009,2010,2011 2967cc 155kW 211HP
Audi A6 C6 Avant (4F5) 3.0 TFSI quattro 2008,2009,2010,2011 2995cc 220kW 299HP
Audi A6 C6 Avant (4F5) 3.0 TFSI quattro 2008,2009,2010,2011 2995cc 213kW 290HP
Audi A6 C6 Avant (4F5) 3.0 quattro 2005,2006 2976cc 160kW 218HP
Audi A6 C6 Avant (4F5) 3.2 FSI 2005,2006,2007,2008 3123cc 188kW 255HP
Audi A6 C6 Avant (4F5) 3.2 FSI quattro 2005,2006,2007,2008 3123cc 188kW 255HP
Audi A6 C6 Avant (4F5) 4.2 FSI quattro 2006,2007,2008,2009,2010,2011 4163cc 257kW 350HP
Audi A6 C6 Avant (4F5) 4.2 quattro 2005,2006 4163cc 246kW 335HP
Audi A6 C6 Avant (4F5) S6 quattro 2006,2007,2008,2009,2010,2011 5204cc 320kW 435HP
